Beyond the permit window: How data-led integrity is redefining offshore pipeline life extension

JIM BRAMLETT, Tracerco

There is a moment in the lifecycle of every offshore asset when the conversation shifts. Production targets, reservoir management and operational efficiency remain important, but they are joined by a more fundamental question: how much longer can this keep running asset safely and economically?

Across the Gulf of Mexico/America, that moment is arriving for a growing number of operators. Assets commissioned in the late 1990s and early 2000s are reaching the end of their original 20-to-25-year permit periods. The Bureau of Safety and Environmental Enforcement (BSEE) requires operators to demonstrate that an asset remains fit-for-purpose before granting a life extension permit—and that demonstration must be built on evidence, not expectation.

The decision is rarely straightforward. Decommissioning is expensive, with deepwater assets often incurring hundreds of millions of dollars in costs, and it removes production capacity that is increasingly difficult and financially intensive to replace. Life extension can unlock significant value from infrastructure that has already paid back its development costs—but only if operators can demonstrate with confidence that the asset—and critically, its subsea pipeline and riser infrastructure—remains in a condition that meets regulatory and safety standards.

What operators in the U.S. Gulf clearly understand is the underlying economics. An asset that cost $5 billion to develop and bring into production will have recovered that capital outlay over the course of its original permit. Every barrel produced beyond that point carries a substantially higher margin. The financial logic of extension is compelling, but it is conditional on the ability to prove integrity.

That proof is not always easy to obtain, and the consequences of attempting to secure it too late are significant.

THE DECOMMISSIONING VS. EXTENSION EQUATION

Choosing between decommissioning and life extension is not simply an engineering decision; it is a strategic decision, shaped by production economics, asset condition, regulatory requirements and operator risk.

For many mature U.S. Gulf assets, the commercial case for extension is strong. Facilities that have been optimized over decades of operation—with established production infrastructure and experienced personnel—represent an efficient base from which to continue producing. In a market where the cost and complexity of new deepwater development continues to rise, extending the production life of existing assets offers a route to maintaining output without committing to a full new-build investment cycle.

However, extension is not simply a matter of choosing to continue. Operators must satisfy BSEE that every component of the asset—topsides, structures and subsea infrastructure—meets the standards required for continued safe operation. A permit extension is only approved for well-maintained platforms, where the integrity of all components can be demonstrated.

Subsea pipelines, risers and flowlines often represent the most challenging element of that assessment. They are critical to production flow and also among the most difficult components to inspect and evaluate. Operating in deepwater, high-pressure conditions that frequently preclude conventional inspection methods, ageing flowlines can experience wall loss, corrosion, wax, scale and asphaltene deposition, or even hydrate formation that is simply not visible without specialist diagnostic capability.

An operator that reaches the permit renewal window without a clear, defensible picture of subsea pipeline condition is in a difficult position. They cannot make an informed extension decision. They may face delays in the BSEE approval process. And in the worst case, they may find that problems identified late are either too costly to remediate or too advanced to address safely, meaning decommissioning becomes the only viable path—regardless of what the economics might otherwise support.

LATE-LIFE PLANNING MUST START YEARS IN ADVANCE

The principle of predictive maintenance is not new. In any engineering context, the value of understanding an asset’s condition before problems begin—rather than responding after they occur—is well-established. However, in offshore pipeline management, the gap between understanding this principle and acting on it early enough remains wide.

The consistent advice to operators across mature basins is to begin the life extension planning process at least two years before the current permit period expires—ideally longer.

Gathering the baseline integrity data required to support a BSEE application takes time. All of it, including identifying any issues that need to be addressed, planning and executing remediation work and building the documented evidence base that regulators require, needs to be completed before the application window opens, not during it.

The operators who approach this process successfully are those who treat it as a program, not a project. They establish regular inspection intervals, build up trend data over time and arrive at the permit renewal process with a coherent, longitudinal picture of asset condition. That is the kind of evidence that gives regulators confidence and gives operators options.

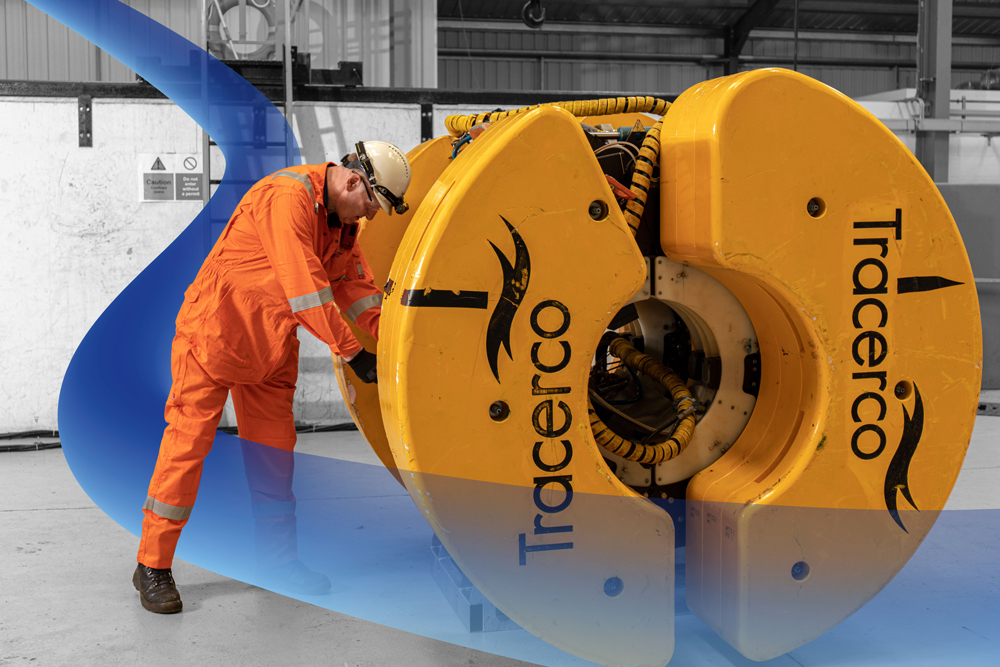

Fig. 1. Tracerco engineer preparing Discovery™.

The risk of discovering a significant problem with insufficient time to respond is real, and the consequences can be severe, both operationally and commercially.

There is also a subtler cost to late engagement. When integrity data are gathered reactively, in response to a permit deadline rather than as part of an ongoing program, it tends to be less rich. Snapshot data tell you the condition of a pipeline at a single point in time. Longitudinal data, built up over multiple inspection cycles, tell you something far more valuable: how the pipeline is behaving, whether degradation is occurring and if so, at what rate. That trend information is critical to making a credible case for life extension.

THE INTEGRITY DATA CHALLENGE: WHERE TRADITIONAL METHODS FALL SHORT

Understanding the condition of a subsea pipeline in a mature deepwater field is not a trivial undertaking. Traditional inspection approaches face genuine limitations in this environment, and those limitations become more acute, as assets age.

Conventional internal line inspection (pipeline inspection gauges or pigs) is the established method for assessing wall condition in onshore and many offshore pipelines. However, many subsea flowlines in deepwater Gulf of Mexico fields either were never designed to be piggable, or they have undergone configuration changes over their operational life that make internal inspection impractical. In these cases, attempting to use conventional inline inspection tools is not only difficult, but it also carries a real risk of causing the very damage operators are trying to detect and prevent.

External inspection, using remotely operated vehicles, can provide valuable visual information about the outer condition of a pipeline, but it cannot reveal what is happening inside the pipe wall. Corrosion, internal deposition and wall thinning are not visible from the outside. And in deep water, even ROV-based external inspection is expensive and operationally demanding.

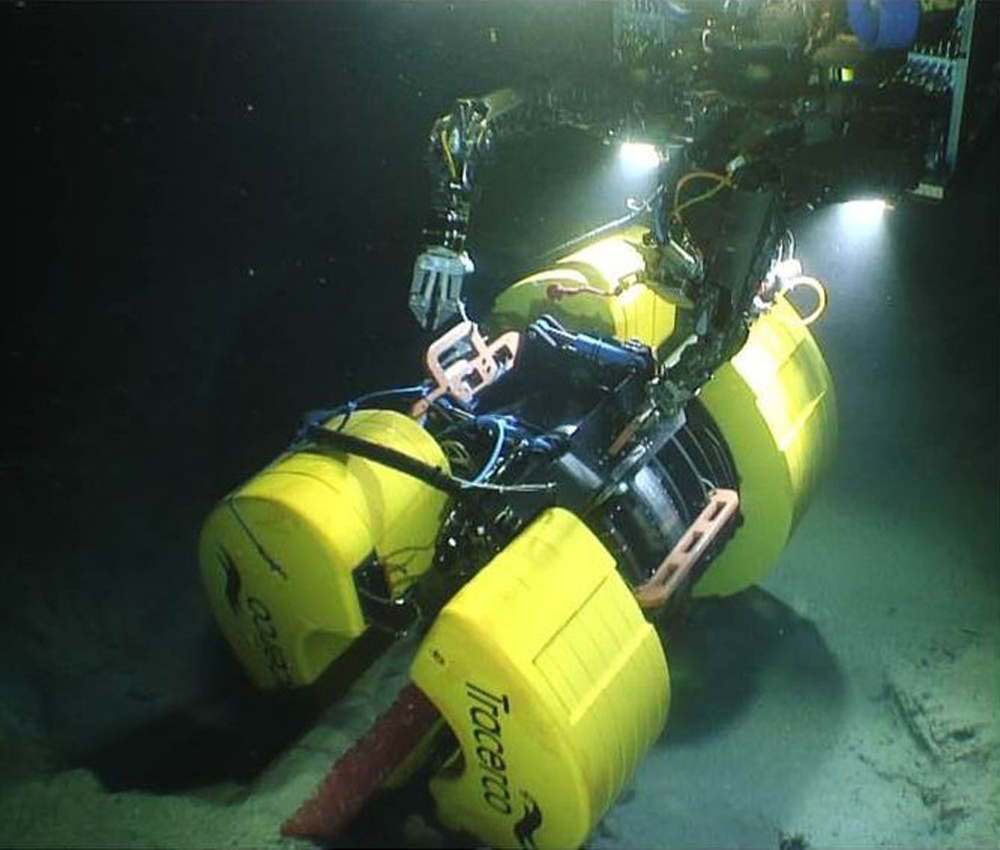

Fig. 2. Tracerco's Discovery™ technology on a pipe.

The result, in many mature fields, is an inspection gap. Operators may have extensive records of operational history and surface-level monitoring data, but they lack a clear, quantified picture of what is actually happening inside the subsea flowlines. In a regulatory environment that requires demonstrable integrity, that gap is a vulnerability, but the right technology offers the solution, Fig. 1.

NON-INTRUSIVE DIAGNOSTICS AND THE SHIFT TO INFORMED DECISION-MAKING

The development of non-intrusive subsea diagnostic technology has fundamentally changed what is possible in mature asset management. Where operators were previously reliant on indirect indicators or expensive, disruptive inspection campaigns, it is now possible to obtain detailed, quantified data on the internal condition of a subsea pipeline without interrupting production, removing coatings or modifying the pipeline in any way.

Tracerco's Discovery™ technology was developed specifically to address the inspection challenges that conventional methods cannot resolve. Built on the principles of computed tomography—the same non-invasive imaging approach used in medical diagnostics—it enables operators to see inside a subsea pipeline in real time, from the outside, while the pipeline remains fully operational, Fig. 2.

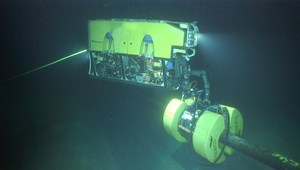

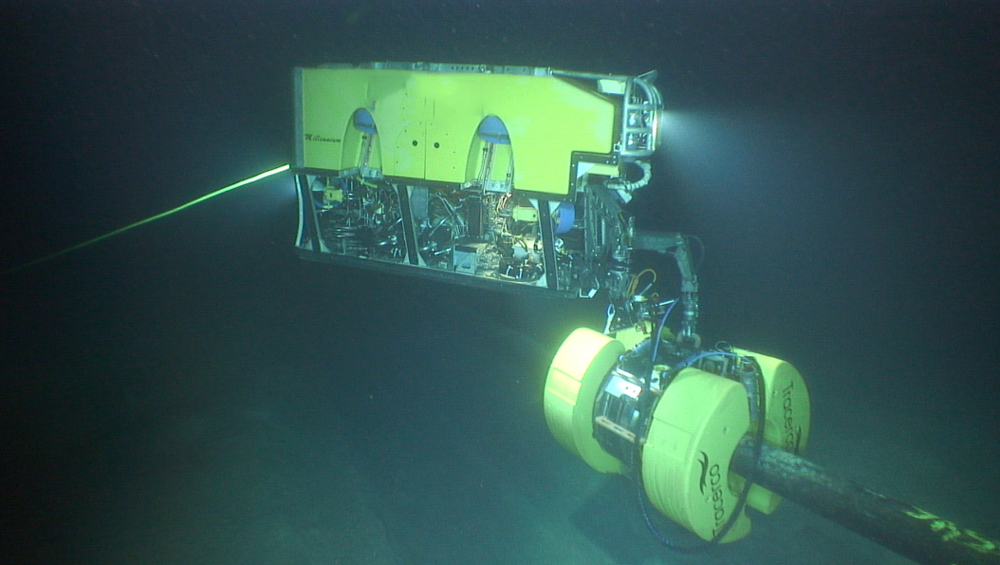

Fig. 3. Tracerco’s Discovery on an ROV.

Deployed by ROV and clamped directly onto the pipe, the technology passes a CT beam through the pipeline wall and its contents, measuring density variations to produce high-resolution tomographic images. These images allow operators to quantify wall thickness, identify and characterize internal corrosion, detect deposition build-up—including wax, hydrate, sand and asphaltene—and assess overall pipeline condition with a level of precision that was previously unachievable in a live, deepwater subsea environment, Fig. 3.

To date, Discovery™ has been deployed across tens of thousands of scans worldwide. In the U.S. Gulf alone, Tracerco secured a significant contract deploying this technology across a trio of major U.S. energy companies—each operating different flowline and riser configurations across multiple platforms—in a project that underlines both the scalability of the approach and the growing operator need for non-intrusive subsea diagnostics at scale.

Most critically, none of this requires downtime, meaning the pipeline continues to produce throughout the inspection. There is no need for coating removal, no risk of mechanical damage from internal tooling and no requirement for pipeline modifications. For an ageing asset where operational continuity is a priority and intervention costs are high, this represents a fundamental shift in what is practically achievable.

THE COMBINED VALUE OF INTEGRITY AND FLOW ASSURANCE DATA

One of the less-discussed advantages of advanced subsea diagnostics is the ability to generate both integrity and flow assurance data within a single deployment. Traditionally, these have been treated as separate workstreams: integrity teams focused on pipeline condition, while flow assurance teams focused on production efficiency and blockage management. The two disciplines have used different data, operated on different timescales and historically, required separate mobilizations.

In a mature field approaching its permit renewal window, that separation is inefficient and potentially costly. The condition of a subsea flowline affects both its structural integrity and its flow characteristics. Deposition build-up that is compromising flowrates may also be contributing to corrosion. Wall thinning that raises integrity concerns may be associated with changes in fluid composition or production chemistry. Understanding both dimensions simultaneously from a single inspection campaign provides a more complete picture than either dataset could offer alone.

In practice, this dual capability has delivered measurable value on U.S. Gulf projects. In one recent case, a major operator engaged Tracerco specifically to assess pipeline wall condition as part of their life extension preparation. During the same deployment, Discovery™ identified flow assurance issues—deposition build-up affecting flow performance—of which the operator had no prior visibility. They were able to address the problem online, without interrupting production, and what began as a single integrity project developed into a long-term inspection agreement. It is a pattern Tracerco sees regularly: operators come for the integrity data, and they leave with a fundamentally clearer picture of their asset than they expected.

For operators preparing a life extension case, this integrated data picture is valuable in two directions. It strengthens the integrity evidence base that regulators require. And it provides better information on which to base production decisions, maintenance planning and investment priorities for the extended operating period ahead.

The shift from reactive to predictive maintenance in offshore pipeline management is sometimes framed primarily as a safety requirement or regulatory compliance obligation; both are true. However, it is also a commercial strategy: compared with the potential cost of unplanned shutdowns and lost production, the cost of proactive inspection and maintenance programs is modest. A non-intrusive diagnostic survey can be mobilized quickly, carried out without production impact and completed at a fraction of the cost associated with responding to an unexpected failure.

LOOKING AHEAD: THE MATURE ASSET CHALLENGE IN A TRANSITIONING ENERGY LANDSCAPE

Late-life asset management in the U.S. Gulf is part of a broader challenge facing the offshore industry as the global energy mix evolves. Extending the productive life of existing offshore infrastructure safely and responsibly—on the basis of sound integrity data—allows operators to maximize the value of assets that already exist.

Non-intrusive diagnostic technology has removed many of the barriers that previously made subsea pipeline integrity assessment difficult in mature deepwater assets. What remains essential is the willingness to use those tools early and consistently. Operators who treat integrity data as an operational asset, rather than a compliance cost, will be best-positioned to navigate the late-life challenge.

JIM BRAMLETT is commercial manager–Americas at Tracerco, with nearly three decades of experience in subsea diagnostics and offshore pipeline integrity. Throughout his career, he has held diverse roles spanning in-field operations, operational management and business development leadership. A key highlight of Mr. Bramlett’s career has been his integral role in the successful market delivery of Tracerco’s Discovery™ technology. His leadership and commercial strategy played a pivotal role in establishing Discovery™ as a trusted solution for subsea integrity assessment worldwide. He works with operators across the U.S. Gulf and the broader Americas region on asset life extension, predictive maintenance and subsea inspection programs.
