Revolutionizing intelligent completions: How an e-ICV enhances production through downhole insights and operational efficiency

KEVIN THORPE and SEBASTIAAN WOLTERS, Weatherford

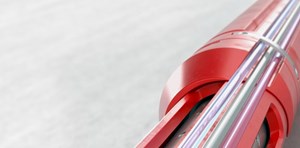

Fig. 1. The Weatherford AMP all-electric interval control valve delivers the ability to control production from, and injection into, isolated zones within a wellbore precisely and selectively.

In today’s energy landscape, where operators must balance production efficiency with cost containment and environmental stewardship, the adoption of cutting-edge completion technologies is more critical than ever. Intelligent completion systems have long promised transformative potential for well optimization, offering dynamic control over reservoir contributions and downhole environments. However, legacy hydraulic and electro-hydraulic systems often fall short in key areas, such as speed, reliability and operational simplicity.

The Weatherford AMP All-Electric Interval Control Valve (e-ICV) is a next-generation solution designed to bridge these gaps with a fundamentally new approach to intelligent completions, Fig. 1. Marrying precision, speed and system resilience with a drastically reduced surface footprint, the AMP e-ICV is redefining what operators can expect from their completion assets. Its architecture, built on streamlined electric actuation and robust redundancy, not only enhances production performance but also accelerates decision-making, boosts reliability and simplifies operations.

EVOLUTION OF ICVs: FROM HYDRAULIC COMPLEXITY TO ELECTRIC SIMPLICITY

Historically, ICVs have played a critical role in managing zonal inflow and injection in multizone wells. Conventional hydraulic ICVs, while effective, introduce significant complexity through their reliance on extensive hydraulic lines, surface umbilicals, pumps and large control panels. This complexity translates into longer installation times, slower response rates—ranging from 30 min. to over 12 hrs—and increased potential for failure or maintenance-intensive operations.

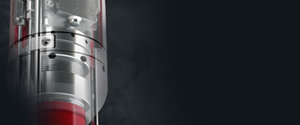

Fig. 2. A simplified valve position measurement gives you position feedback at surface. You can actuate the valve automatically, manually or remotely from surface, to deliver a rapid and flexible response to changing well conditions.

Hybrid electro-hydraulic solutions attempt to improve speed and control granularity, but they retain many of the burdens of hydraulic infrastructure and fluid management. In contrast, the AMP e-ICV offers a fully electric alternative that delivers true digital control and eliminates many of the legacy pain points.

SPEED AND PRECISION: TRANSFORMING DOWNHOLE DECISION-MAKING

One of the most striking advantages of the AMP e-ICV is its extraordinary responsiveness. Built around a dual-motor, ball-screw actuator system, the valves achieve choke position adjustments in mere minutes—orders of magnitude faster than its hydraulic predecessors, Fig. 2. This rapid shift capability enables real-time production optimization, giving operators the ability to respond instantly to reservoir dynamics, pressure fluctuations or strategic production changes.

In practice, this agility translates to higher production performance. Whether optimizing production schemes or balancing inflow across a heterogeneous reservoir, the e-ICV’s fine-tuned control allows for nuanced, data-driven decision-making and near real-time optimization of reservoir drawdown, zonal isolation and water breakthrough mitigation. With the integration of real-time pressure and temperature gauges, available in both quartz and fiber optic configurations, operators gain a constant window into downhole conditions, enabling predictive and proactive well management.

This degree of control is especially valuable in today’s environment, where intervention costs are high, and nonproductive time (NPT) is financially punitive. The ability to shift valves on demand from the surface without physical intervention fundamentally changes the economics of well optimization.

REDEFINING RELIABILITY THROUGH ENGINEERING REDUNDANCY

Fig. 3. With minimal downhole electronics and tungsten-carbide nozzles, the AMP e-ICV is designed to be debris-tolerant. Its dual-motor ball-screw actuator allows for high shifting forces to overcome scale and debris buildup.

Despite the ongoing shift towards electric systems in recent years, concerns over reliability and system robustness have sometimes hindered widespread adoption. Qualified to API 19ICV, the AMP e-ICV addresses these head-on through a deliberate focus on mechanical and electrical redundancy, Fig. 3.

Each valve integrates a dual-motor, dual-ball screw mechanism, ensuring no single motor is required to operate beyond 50% of its design capacity. This architecture not only extends the life of the components but also provides built-in redundancy, in case one motor underperforms or fails.

Importantly, the AMP e-ICV features electrical isolation for each valve, with a dedicated conductor for each zone, seamlessly packaged into a single ¼-in tubing encapsulated conductor (TEC) line. A fault in one valve does not compromise the operation of others. Moreover, the system’s mechanical override capability ensures that, even in a total power loss scenario, manual shifting with conventional tools remains possible.

Unlike electro-hydraulic systems, the AMP e-ICV has minimal downhole electronics, which substantially reduces failure modes associated with electrical stress, heat and vibration. Its fully enclosed design also eliminates the need for fluid cleanliness management—a frequent source of reliability issues in hydraulic systems.

This focus on reliability aligns with broader industry trends pushing for asset integrity and uptime maximization. Reduced need for intervention and increased operational confidence means lower total cost of ownership and better overall well economics.

SMALLER SURFACE FOOTPRINT, BIGGER OPERATIONAL IMPACT

One of the most often overlooked yet significant benefits of the AMP e-ICV lies in its minimal surface footprint. By eliminating hydraulic lines, fluid reservoirs, manifolds and large-scale control panels, the system requires substantially less surface footprint topside. This is a major advantage in space-constrained environments like offshore platforms, where infrastructure spaces are limited and complex.

The simplified surface architecture also translates into faster deployment times, reduced logistics and lower installation risk. Without the need for specialized hydraulic integration or maintenance-intensive fluid systems, the overall system lifecycle costs are reduced considerably.

EMPOWERING THE DIGITAL OIL FIELD

Fig. 4. A compact surface control panel substantially reduces required platform space, while controlling multiple AMP e-ICVs across multiple wells. The control panel is fully SCADA-compatible and allows you to observe and control wells remotely from almost anywhere.

Perhaps the most compelling aspect of the AMP e-ICV is how it fits into the broader vision of the digital oil field, Fig. 4. By delivering high-resolution, real-time data directly from the wellbore and enabling instant flow control adjustments, the system acts as both a sensor and actuator in an integrated digital network. Operators can remotely optimize performance using advanced analytics, machine learning models or A.I.-driven control systems, enabling proactive production strategies such as:

• Identifying and controlling water breakthrough
• Optimizing zone-by-zone drawdown, to avoid sand production or coning
• Balancing production rates to maintain reservoir pressure.

Such capabilities represent a fundamental shift from reactive to predictive well management, unlocking new benchmarks for field-wide optimization strategies. The value isn’t just in the data but rather, in how seamlessly the AMP e-ICV allows operators to act on it.

A NEW STANDARD FOR INTELLIGENT WELL COMPLETIONS

The AMP e-ICV is more than just a new tool—it’s a transformative technology that redefines what intelligent completions can achieve. It represents a paradigm shift in how operators approach completion design, reservoir management and production optimization. By resolving the speed, complexity, and reliability challenges of traditional systems, the AMP e-ICV provides a unified solution that is not only more efficient but also inherently more resilient.

As operators face increasing pressure to improve recovery factors, reduce carbon intensity and lower overall development costs, solutions like the AMP e-ICV offer a powerful lever for driving results. Its ability to deliver actionable downhole insights, enabling real-time decision-making and driving downhole changes in near real time over the life of the well, makes it a cornerstone technology in the era of intelligent and adaptive oilfield development.

With its unique combination of rapid actuation, superior reliability, reduced surface complexity, and digital integration, the AMP e-ICV sets a new standard for intelligent completions—one that aligns with the industry’s most pressing performance, safety and sustainability goals. The AMP e-ICV is not just an innovation, it’s an imperative.

KEVIN THORPE is the global director of Business Development and Strategy for Completions and Well Construction at Weatherford. Since joining the company in 2015, he has held several leadership roles across the global completions business. Prior to this, he spent much of his career in West and Sub-Saharan Africa, supporting deepwater projects with major IOCs. Mr. Thorpe is based in Abu Dhabi, supporting Weatherford's customer base globally to deliver wells with less risk, more efficiency and improved productivity.

SEBASTIAAN WOLTERS is the global product line champion for Intelligent Completion Systems at Weatherford. He has 30 years of work experience in the oil and gas service industry and joined Weatherford in 2016. He has held several leadership, operational and technical roles in Europe, the Middle East, and the U.S. His knowledge and experience span many product lines and segments, but he recently focused on Intelligent Completion Systems again. Mr. Wolters is based in Houston, supporting Weatherford's Completions product line.
